Rescue ECM 6630TS

Rescue

Sold out.

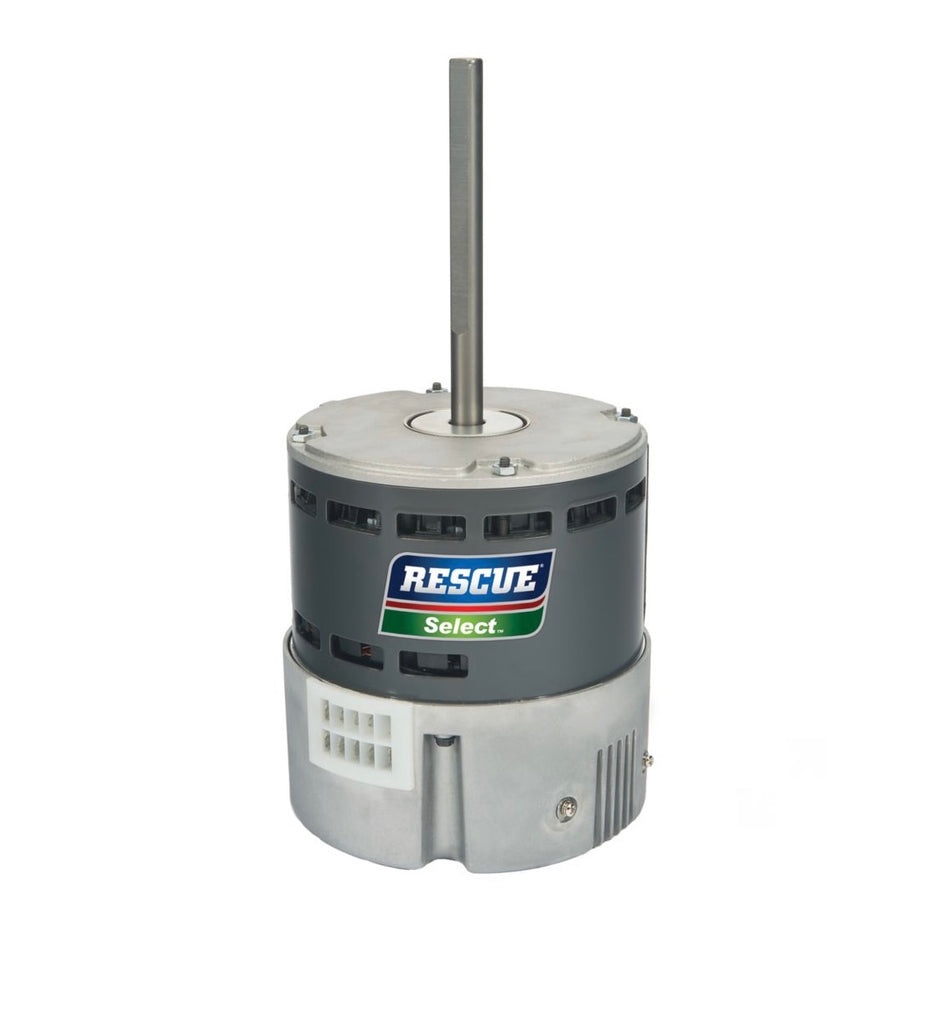

Blower Motor, Constant Torque, 1/2 HP, 115V-1Ph, 5 Speed, 1050 RPM, US Motors 6630TS, "Rescue" Motor

HP 1/2
RPM 1200
VOLTAGE 115V
FRAME 48Y
PHASE 1
ENCLOSURE OAO
MATERIAL Rolled Steel
MOUNTING Belly Band

Features

  • Replaces X13®† and SeleTech® constant torque ECM motors
  • Programmed Torque Values set to match OEM performance*
  • Uses Equipment's existing connections, for ease of installation
  • High Efficiency Design
  • Smooth, Quiet Start-Up and speed changes
  • Potted Electric Module for Superior Moisture Protection
  • 6000V Surge Protection
  • Quiet Operation
  • Belly Band Mounted
  • Reversible Rotation
  • Ball Bearings

ENSURE THIS IS THE CORRECT REPLACEMENT AS THERE ARE NO RETURNS ON ELECTRICAL PARTS

Replacement for:

EMERSON 6630RS, M055ENU-1181 , M055EPB-1187 , M055ENM1175015B , M055ENV-1182 , M055EPE-1190 , M055EPG-1192 , M055EPD-1189 , M055NBY-3131 , M055EPF-1191 , M055EPC-1188

CARRIER HD44MR129 , HD44MR124, HD44MR122 , HD44MR116 , HD44LR121 , HD44MR130 , HD44MR128, HD44MR123 , HD44MR120 , HD44MR115, HD44LR120 , HD44LR122, P257-FLEX1370

EC MAX 46012    ENVIROTECH PM-02-0432

GENERAL ELECTRIC GE 5SME39DXL442 , 5SME39HXL724 , 5SME39HXL726 , 5SME39DXL12

GENTEQ 6105E , 6103E

GOODMAN 131F00050 , 131F00052 , 131F00051 , 131F00034S , 131F00035S , 131F00047 , 131F00046

ICP 1183517 , 1184510 , 1186036 , 1186849 , 1187058 , 1184509 , 1186035 , 1186827 , 1187059

LENNOX 104944-13 , 607363-01 , 607363-03 , 607421-02 , 81W3401 , 81W3201 , 607363-02 , 607421-01 , 607421-03 , 81W3301

MARS 10860

NAILOR H1-2103 , H1-2103S , H1-2105

RHEEM 51-102171-01 , 51-104355-10 , 51-102172-02 , 51-102172-04 , 51-102172-07 , 51-102172-09 , 51-104354-01 , 51-104355-01 , 51-104355-03 , 51-104355-05, 51-104355-07 , 51-104355-09 , 51-104355-12, 51-102171-02 , 51-102172-06 , 51-102171-00 , 51-102171-03 , 51-102172-01 , 51-102172-03 , 51-102172-05 , 51-102172-08 , 51-102172-10 , 51-104354-02 , 51-104355-02 , 51-104355-04 , 51-104355-06, 51-104355-08 , 51-102172-00

TRANE D345614P01 , M0T-12245 , D672366G06 , D672366G10 , D672366G15 , D672366G22 , D672366G76 , M0T-12244, M0T-12246 , M0T-12254 , M0T-12256 , M0T-12263 , M0T-14392 , D345614P03 , D672366G05 , D672366G09 , D672366G14 , D672366G16 , D672366G23 , M0T-12250, M0T-12255 , M0T-12262 , M0T-14391 , M0T-12249 , X70370580030 , D672366G04

UPG YORK 024-35846-000 , 024-35887-000 , 024-36000-000 , 024-36093-000 , 024-36094-000 , 024-35848-000 , 024-35999-000 , 024-36037-000 , 024-35845-000
